Brown Kraft Paper Bag Making Machine

As a professional high quality Brown Kraft Paper Bag Making Machine manufacture,zhengding brown Kraft paper bag making machine is a specialized piece of equipment used in the manufacturing process of brown Kraft paper bags. ou can rest assured to buy Brown Kraft Paper Bag Making Machine from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

Overview

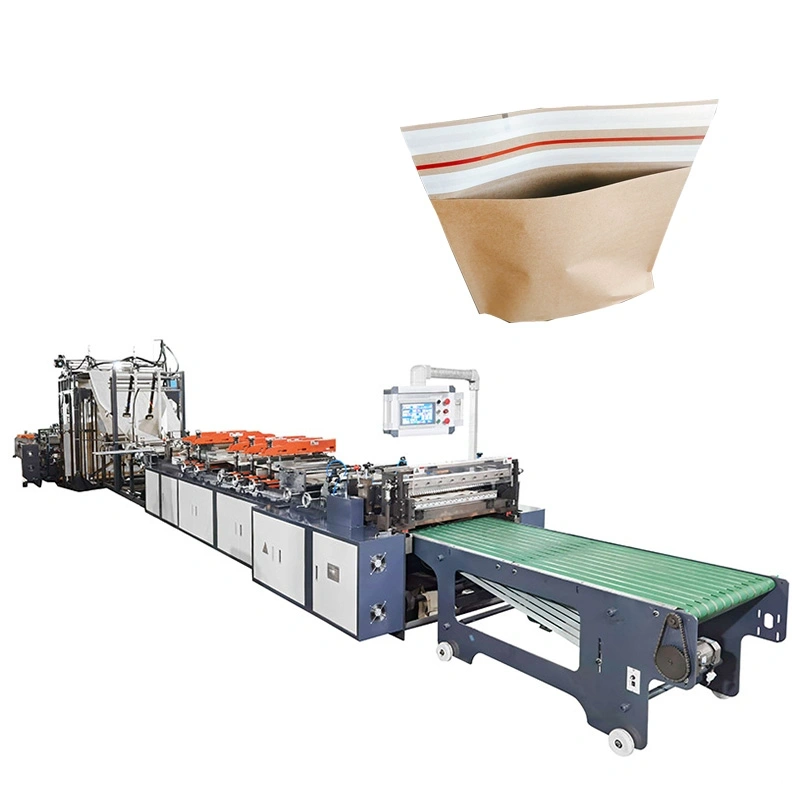

Introducing the innovative Brown Kraft Paper Bag Making Machine, specifically crafted for the efficient production of high-quality kraft express envelope bags.

The bag-making process is seamlessly orchestrated: the kraft paper unwinds onto the machine, adhesive is applied both vertically and horizontally, followed by precise edge folding, bottom insertion, heat pressing, and finally, a clean cut. This systematic process results in the creation of a fully functional and environmentally-friendly pure paper express packaging bag.

Powered by cutting-edge technology, the entire machine is controlled by a sophisticated motion controller, seamlessly orchestrating the harmonious movement of multiple servos. This synergy of components ensures a seamless and automated bag-making experience, significantly enhancing production efficiency.

Invest in the Brown Kraft Paper Bag Making Machine for a reliable and advanced solution to meet your kraft express envelope bag production needs. With its intricate design and automated precision, it's a game-changer in the world of packaging machinery.

We also have other paper devices:

1. Honeycomb Paper Envelope Machine: paper bags produced by it can replace bubble film bags and have a good buffering effect.

2. Paper Bubble Envelope Machine: paper bags produced by it can replace bubble film bags and have a good buffering effect.

3. Corrugated Paper Envelope Machine:

4. Bottom Gusset Bag Machine: paper bags produced by it can replace gray and black film express bags, paper-plastic composite bags, and transparent paper can replace POPP clothing bags, hospital pill bags and so on.

5. Honeycomb Paper Rolling Cutting Machine: honeycomb paper can replace bubble film to package cosmetics, medicine bottles, circuit boards, electronic originals, etc., with good buffering effect.

There is no plastic in these bags. They are all glued together. They are completely recycled pulp, which is environmentally friendly in the real sense.

Product Attributes

Model No.: KPEB-700-A

Brand: ZHENGDING

Applicable Industries: Manufacturing Plant, Retail, Advertising Company

Showroom Location: None

Condition: New

Machine type: Bag Forming Machine

Material: Plastic

Computerized: Yes

Brand Name: zhengdong

Model Number: Kraft envelope

Warranty: 1 Year

Key Selling Points: Remote Monitoring

Marketing type: New Product 2020, Other

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 1 Year

Core components: Motor

Max Speed: 80pcs/Min

Maximum machine speed: 80pcs/mim

Effective width of bag: 400mm~500mm

Effective length of bag: 350~700mm

Diameter of unwinding: 1400mm

Applicable material: kraft paper

Dimensions: 18mx2.3mx2.5m (LxWxH)

Backup power: 38KW

After Warranty Service: Video Technical Support	Applicable industry: Manufacturing Plant	Out-of-warranty service: Video Technical Support, Online Support, Spare Parts	Where to provide local services (in which countries are there overseas service outlets): None
Showroom location (in which countries are there sample rooms overseas): None	status: New	Bag material: Paper	Programming control: Yes
place of origin: China	warranty period: 1 Year	Core selling point: Easy To Operate, Flexible Manufacturing, Multifunctional, Remote Control, Long Service Life	Mechanical test report: Provided
Video factory inspection: Provided	Core component warranty period: 1 Year	Bag Type: Other	Place of Origin: Zhejiang, China
Voltage: 380V, 380V 50Hz	Weight: 3 KG

Supply Ability & Additional Information

Packaging: stretch film and wooden pallet or as customer's requirement.	Transportation: Ocean,Land	Place of Origin: China	Supply Ability: 10 Set/Sets per Month
Certificate: CE	Payment Type: L/C,T/T	Incoterm: FOB

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: stretch film and wooden pallet or as customer's requirement.

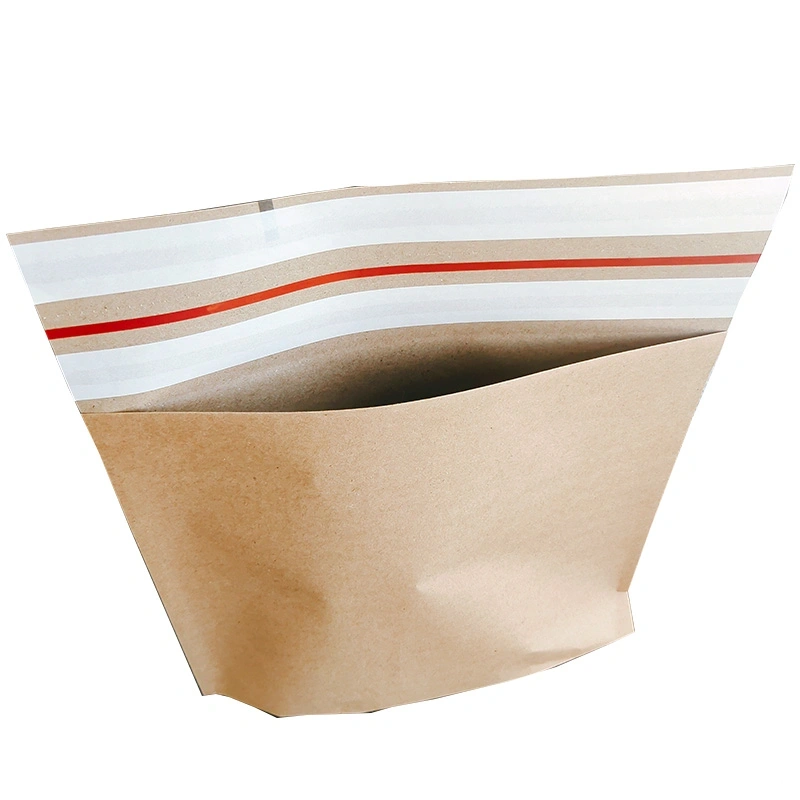

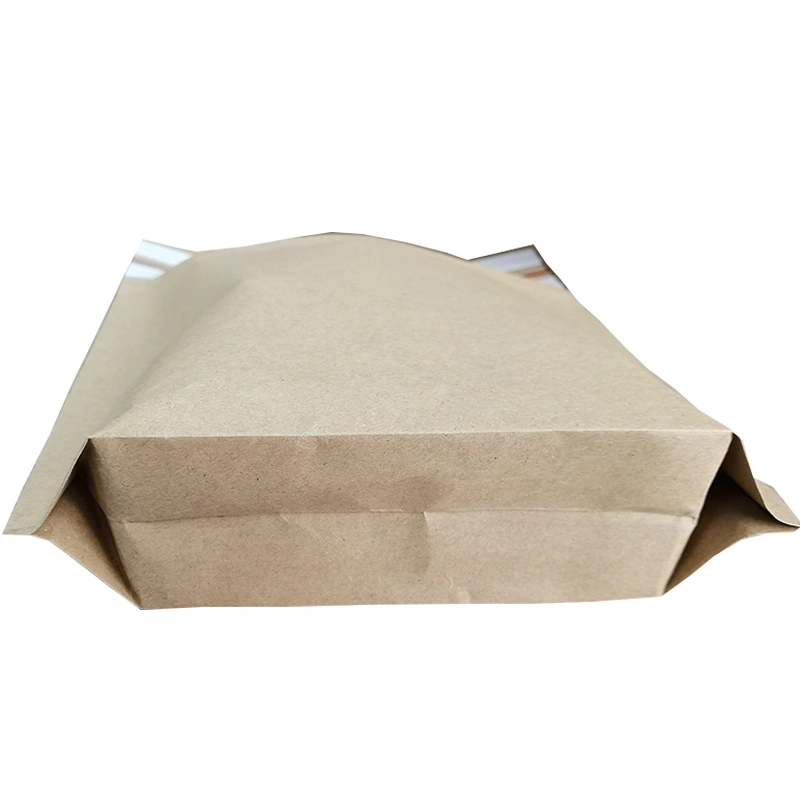

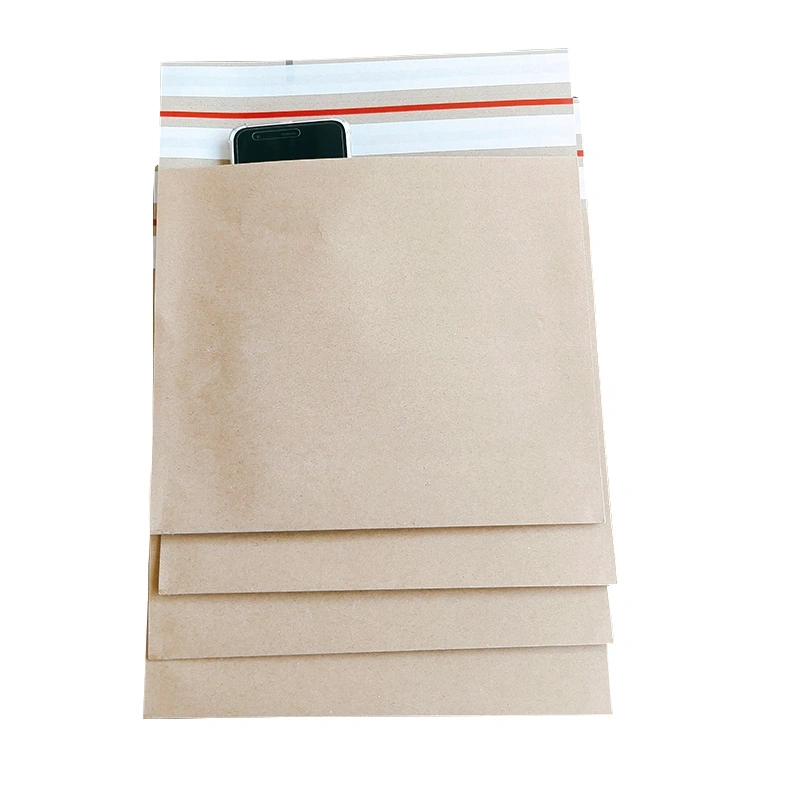

Picture Example:

Product information

product name:	Kraft Envelope Making Machine
Max. speed:	80pcs/min
Max. width of bag:	≤500mm(max. width when the bag is unfold)
Max Length of bag:	≤700mm(max.length when bag is finished)
Material:	kraft paper
Max. diameter of unwinding:	Φ1400mm
Overall dimension:	18m×2.3m×2.5m (L×W×H)
Power:	380V50HZ three-phase five-wire
Backup power	38KW
