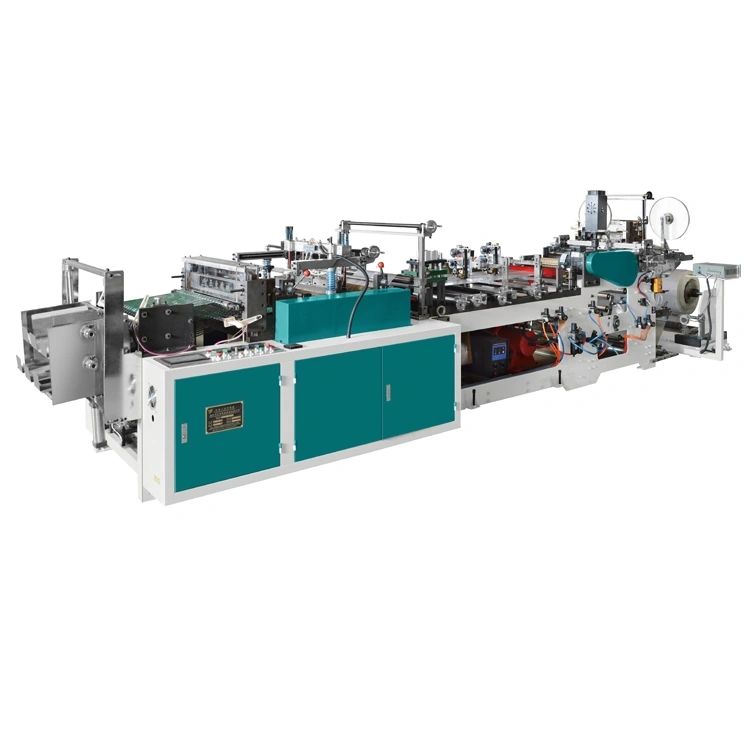

Double line sheet protector making machine

The Double Line Sheet Protector Making Machine, manufactured in China, is a specialized device designed for efficiently producing sheet protectors with double lines. Our factory is committed to delivering high-quality machines with exceptional performance. Incorporating advanced technology and efficient control systems, this machine automates the process of sheet protector making, including material feeding, double line perforation, and sealing. With its reliable operation and precise manufacturing capabilities, this machine offers a cost-effective solution for offices, schools, and other industries requiring sheet protectors with double lines for enhanced organization and protection of documents.

Send Inquiry

Product Description

Overview

The Double Line Sheet Protector Making Machine is a sophisticated and precisely engineered solution designed for creating double line 11 holes sheet protectors, commonly known as the punched pocket machine. This fully automated machine ensures seamless production, starting from the raw material unwinding to the delivery of finished sheet protectors. These protectors find extensive use in schools, offices, and other settings to safeguard important documents and papers.

Developed by Wenzhou Zhengding Packaging Machinery Co., Ltd. in 2008, this machine has earned widespread acclaim, with hundreds of units successfully sold both domestically and internationally. The company also offers an array of other PP stationery machines, including the Button File Making Machine, Book Cover Making Machine, project file making machine, and L folder making machine, catering to diverse stationery production requirements.

The Double Line Sheet Protector Making Machine operates at a remarkable speed of 60-110 pieces per minute, ensuring efficient production rates without compromising precision and quality. It is proficient in processing PP tube rolls with a thickness ranging from 0.05mm to 0.15mm, a width of up to 235mm, and a diameter of up to 600mm.

Built to withstand rigorous use, the machine boasts a weight of around 3.2 tons and compact dimensions, measuring 6.7 meters in length, 1.65 meters in width, and 1.65 meters in height, making it suitable for various manufacturing environments.

In line with global efforts towards sustainability and plastic bans, Wenzhou Zhengding Packaging Machinery Co., Ltd. has diversified its product range to include eco-friendly paper bag making machines, such as the Honeycomb Paper Bag Machine, Corrugated Paper Bag Machine, and honeycomb paper rolling and cutting machine.

For further details and comprehensive information on their machinery offerings, interested parties are welcomed to explore the our website. Wenzhou Zhengding Packaging Machinery Co., Ltd. remains committed to delivering top-quality machinery while embracing environmental responsibility and contributing to a greener future.

Product Attributes

Model No.: ZLD-500D

Brand: Zhengding

Applicable industry: Other

Out-of-warranty service: Video Technical Support, Online Support, Spare Parts

Where to provide local services (in which countries are there overseas service outlets): None

Showroom location (in which countries are there sample rooms overseas): None

status: New

Machine type: Bag Forming Machine

Bag material: Plastic

Programming control: Yes

place of origin: China

warranty period: 1 Year

Core selling point: Easy To Operate, Remote Monitoring, Automatic

Marketing type: New Product 2020

Mechanical test report: Provided

Video factory inspection: Provided

Core component warranty period: 1 Year

Core components: Motor, Plc, Bearing

Condition: New

Warranty: 1 Year

Plastic Processed: Pp

Key Selling Points: Multifunctional

After-sales Service Provided: Field Installation, Commissioning And Training

Screw diameter (mm): 22 mm

Voltage: 380V 50Hz

Dimension(LWH): 6700x1600x1700mm	Power (kW): 17
Weight: 3200kgs	Applicable Industries: stationery
Output (kg/h): 30 - 35 kg/h	Certification: CE ISO9001

Supply Ability & Additional Information

Packaging: plastic stretch film package and wooden pallet	Productivity: 10 sets per month
Transportation: Ocean,Land	Place of Origin: China
Supply Ability: 10 Set/Sets per Month	Certificate: ISO9001
HS Code: 84478000	Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: wooden pallet, stretch film package

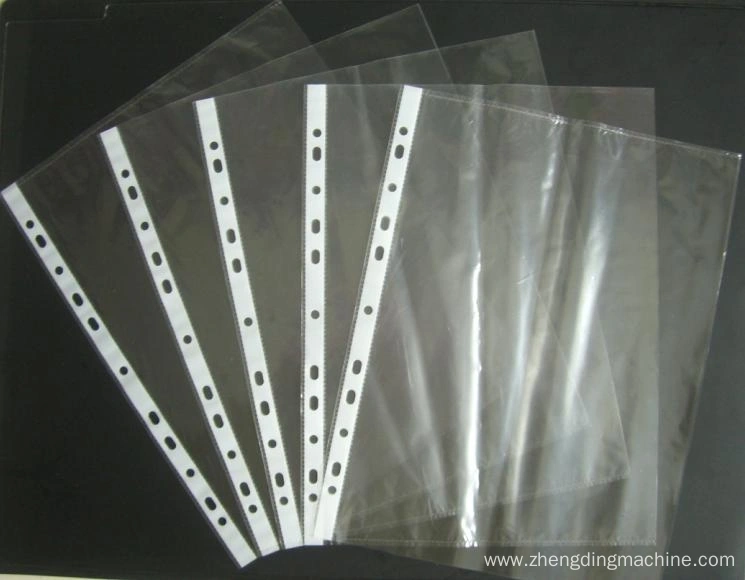

Picture Example:

Product information

Speed of machine	60~110 pcs/min×2
Maximum width of material	235mm×2
Length of bag making	300mm~500mm
Suitable material	PP tube material
Power required	15kw
Weight	3200kgs
Overall dimension	6700mmx1650mmx1650mm (L×W×H)
Working Voltage	380V 50Hz
