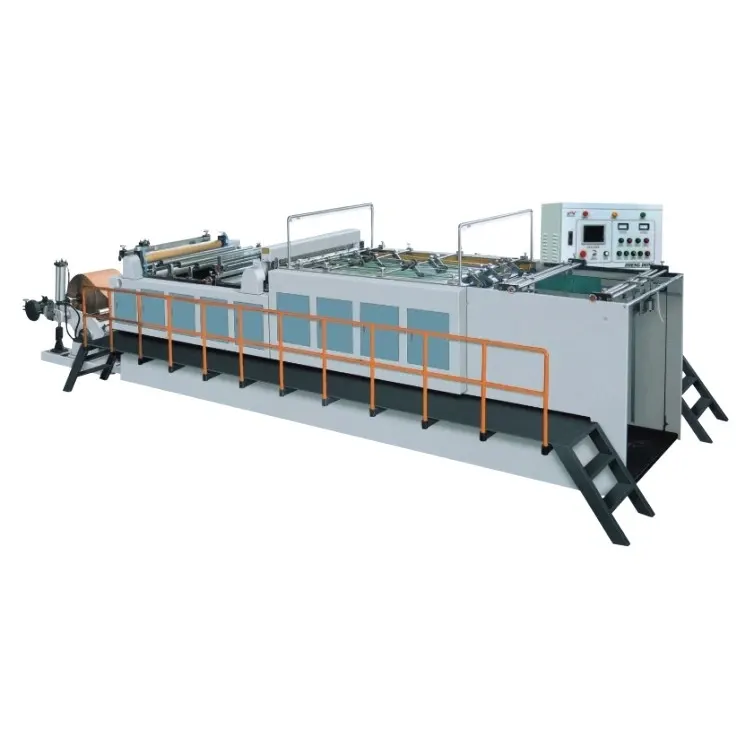

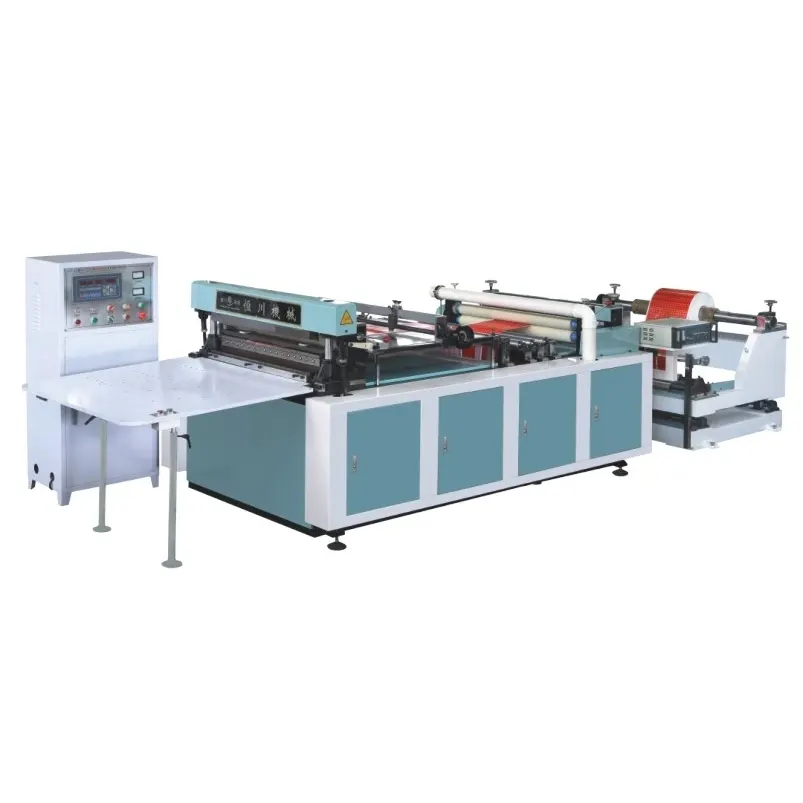

High precision Roll Paper Cross Cutting Machine

Wenzhou Zhengding Packaging Machinery Co., Ltd is a renowned factory specializing in the production of High precision Roll Paper Cross Cutting Machine. With our years of expertise and dedication to innovation, we take pride in delivering cutting-edge machines that excel in precision and efficiency.

Send Inquiry

Product Description

Overview

Our High precision Roll Paper Cross Cutting Machine is designed to meet the specific needs of industries requiring accurate sheet cutting from various rolls of materials. Whether it's paper, plastic, non-woven fabric, or other materials, our machine ensures precise and consistent cutting results, improving productivity and reducing material waste.

Hqj-1100mm computer controlled high precision crosscutting machine

1. Substrate (paper) : 110G ~ 250g/m paper or paper-plastic composite.

2. Maximum diameter of unwinding paper: φ1200mm

3. The unwinding paper is equipped with 3-inch air expansion shaft or 6-inch air expansion shaft.

4. MAXIMUM LIFTING LOAD 1.5 t.

5. Fastest shearing speed is 110 knife/min, 35 ~ 65 M/min.

6. Maximum cutting width: 800 mm

7. Fixed length precision ± 0.2 mm

8. Tracking cutting length: 300 ~ 650 mm

9, Maximum stack height: 700 mm

10, Equipment shape size length: 8600 mm, width: 2100 mm. The weight of the equipment is about 5T.

11. Operating Voltage: 380V 50Hz 12KW

Gift Paper Rewinding Machine, Slitting Rewinding Machine

In addition, we also have the following bag making machines:Paper Bubble Envelope Machine,Honeycomb Paper Envelope Machine,Honeycomb Paper Rolling Cutting Machine,Bubble Mailer Machine,Bottom Gusset Bag Machine,Corrugated Paper Envelope Machine, Security Tamper Evident Bag Machine , Sheet Protector Machine

Product Attributes

Model No.: HQJ

Brand: ZHENGDING

Applicable industry: Printing Shops

Out-of-warranty service: Field Maintenance And Repair Service, Video Technical Support

Where to provide local services (in which countries are there overseas service outlets): France, Indonesia, Pakistan

Showroom location (in which countries are there sample rooms overseas): Egypt, Indonesia

Old and new: New

species: Slitting Rewinder

Programming control: Yes	place of origin: China	warranty period: 1 Year	productivity: 100 M/Min
Core selling point: High-Accuracy	Max. feasible width: 1100mm	Mechanical test report: Provided	Video factory inspection: Provided
Marketing type: Ordinary Product	Core component warranty period: 1 Year	Core components: Motor, Engine, Other	PLC brand: Amsamotion, Gipeng

Supply Ability & Additional Information

Packaging: WOODNE CASE	Productivity: 10 SETS/MONTH	Transportation: Ocean,Land	Place of Origin: CHINA
Supply Ability: 10SETS/MONTH	Certificate: ISO	HS Code: 84778000	Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
