Corrugated Paper Mailers Bag Making Machine

Zhengding is a leading China Corrugated Paper Mailers Bag Making Machine manufacturer, supplier and exporter.Zhengding corrugated paper mailers bag making machine is a specialized piece of equipment used for manufacturing mailer bags made from corrugated paper.

Send Inquiry

Product Description

Overview

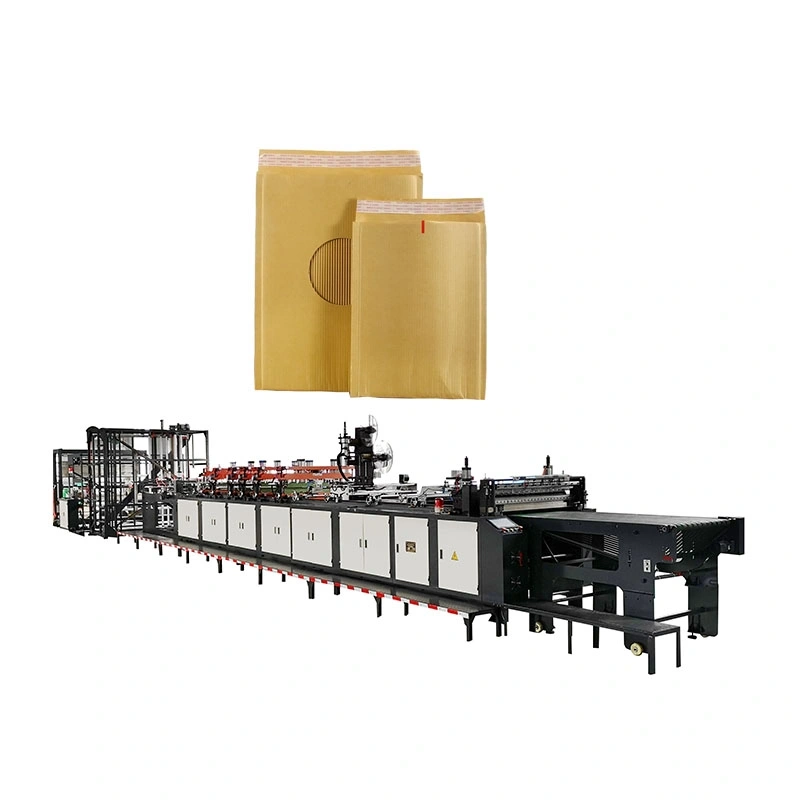

The Corrugated Paper Mailers Bag Making Machine is designed to manufacture bags using a combination of foam paper and corrugated paper. The machine can produce both single and double bags.

The bag-making process involves the following steps: unrolling the laminated foam paper or corrugated paper, folding it horizontally, applying adhesive, folding it in half, heating, pressing, and finally cutting it to shape the bag. The entire machine is controlled by an advanced motion controller, which serves as the primary control system for the whole process. The machine utilizes multiple servo motors to achieve synchronized and automated bag-making operations.

We also have other paper devices:

1. The Honeycomb Paper Envelope Machine creates paper bags that serve as eco-friendly alternatives to bubble film bags, offering excellent cushioning properties.

2. With the Paper Bubble Envelope Machine, you can produce paper bags that effectively replace bubble film bags and provide reliable cushioning.

3. Utilizing the Bottom Gusset Bag Machine, you can manufacture paper bags capable of replacing conventional gray and black film express bags, as well as paper-plastic composite bags. Transparent paper bags can also replace POPP clothing bags, hospital pill bags, and more.

4. The Honeycomb Paper Rolling Cutting Machine is ideal for crafting honeycomb paper, an eco-friendly alternative to bubble film, perfect for packaging cosmetics, medicine bottles, circuit boards, electronic components, and other delicate items, ensuring excellent cushioning.
All these bags are free of plastic materials, being entirely composed of recycled pulp, making them truly environmentally friendly.

Product Attributes

Parameter	Details
Model No.	KPEB-700-CP
Brand	ZHENGDING
Applicable Industries	Express industry
Showroom Location	Not available
Condition	New
Machine Type	Bag Forming Machine
Material	Paper
Computerized	Yes
Brand Name	zhengding
Model Number	zd-500
Dimension(LWH)	190026002300mm
Warranty	1 Year
Key Selling Points	Easy To Operate
Marketing Type	New Product 2020
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Warranty Of Core Components	1 Year
Core Components	Motor
Max Speed	70pcs/Min
Scope of Application	Single layer corrugated paper roll
Mechanical Execution Speed	25-70 PCS/min
Maximum Bag-making Width (Bag Height)	600mm (including envelope tongue)
Working Voltage	380V50HZ, three-phase and four-wire
Maximum Bag Length (Bag Width)	500mm
Effective Unwinding Width	1250mm
Effective Unwinding Diameter	1200mm

Please note that the provided table represents the specifications and details of the KPEB-700-CP Bag Forming Machine manufactured by ZHENGDING. This computerized machine is designed for the express industry and can form paper bags using single-layer corrugated paper rolls. It operates at a maximum speed of 70pcs per minute and offers easy operation as a key selling point. The machine's warranty covers the core components, specifically the motor, for one year.

Mechanical weight: 6000KG	Dimensions: 1900mm/2600mm/2300mm(L/W/H)	Power backup: 30KW	After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None	After-sales Service Provided: Field installation, commissioning and training	Applicable industry: Manufacturing Plant	Out-of-warranty service: Video Technical Support, Online Support, Spare Parts
Where to provide local services (in which countries are there overseas service outlets): None	Showroom location (in which countries are there sample rooms overseas): None	status: New	Bag material: Paper
Programming control: Yes	place of origin: China	warranty period: 1 Year	Core selling point: Easy To Operate, Flexible Manufacturing, Multifunctional, Long Service Life, Remote Control
Mechanical test report: Provided	Video factory inspection: Provided	Core component warranty period: 1 Year	Bag Type: courier bag
Place of Origin: Zhejiang, China	Voltage: 380V 50Hz	Weight: 6000 KG	Certification: ISO 9001

Supply Ability & Additional Information

Packaging: wooden pallet, stretch film package	Transportation: Ocean,Land	Place of Origin: China	Supply Ability: 5 Set/Sets per Month
Certificate: CE	Payment Type: L/C,T/T	Incoterm: FOB

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: stretch film and wooden pallet or as customer's requirement.

Picture Example:

Product information

Parameter	Details
Product Name	Corrugated Paper Bag Making Machine
Max. Speed	70pcs/min
Maximum Bag Length (Bag Width)	500mm
Effective Unwinding Width	1250mm
Material	Kraft paper
Effective Unwinding Diameter	1200mm
Mechanical Weight	6000KG
Dimensions	19000mm/2600mm/2300mm(L/W/H)
Power Backup	30KW

The table above showcases the specifications of the Corrugated Paper Bag Making Machine. It has a maximum speed of 70pcs per minute and can produce bags with a maximum length (bag width) of 500mm. The machine is designed to work with kraft paper and has an effective unwinding width of 1250mm. It weighs approximately 6000KG and its dimensions are 19000mm in length, 2600mm in width, and 2300mm in height. The machine requires a power backup of 30KW.
