Corrugated Surf Paper Rigid Mailer Envelope Making Machine

China is a leading destination for manufacturers and suppliers specializing in ZHENGDING corrugated surf paper rigid mailer envelope making machines. These industry leaders are renowned for producing high-quality machines that automate the production process of rigid mailer envelopes made from corrugated surf paper. With their expertise and advanced technology, they offer efficient and reliable solutions for businesses seeking secure and protective packaging. From customized options to large-scale industrial production, their machines cater to various needs, ensuring precision, durability, and user-friendly operation. These manufacturers and suppliers prioritize innovation and customer satisfaction, making them trusted providers in the packaging machinery market.

Send Inquiry

Product Description

Overview

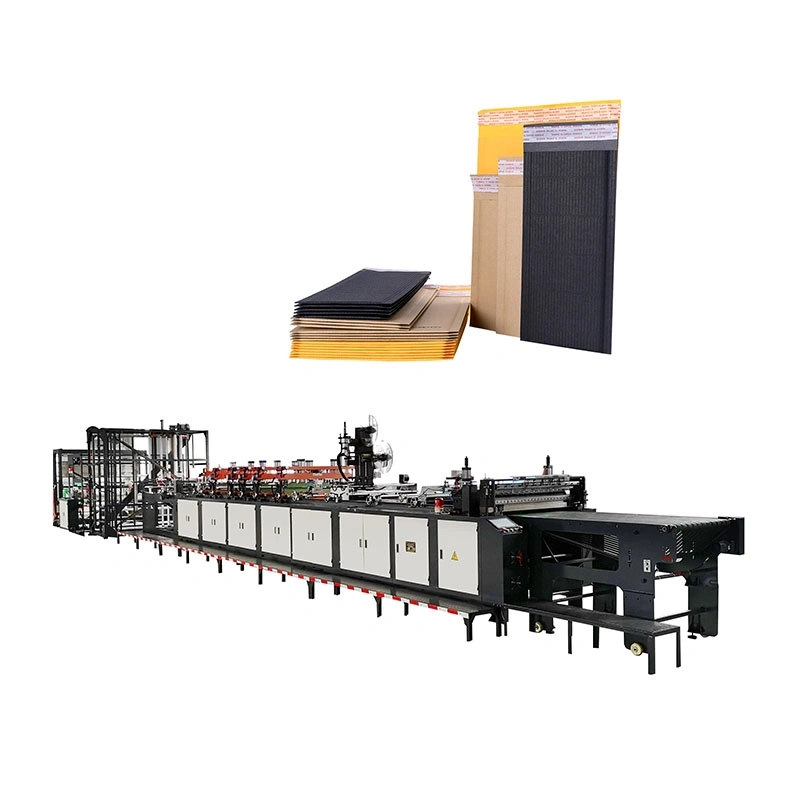

The ZHENGDING Corrugated Surf Paper Rigid Mailer Envelope Making Machine is designed to manufacture bags using a combination of compound foam paper and corrugated paper. It has the capability to produce both single and double bags.

The bag-making process involves several steps: unrolling the laminated foam paper or corrugated paper, folding it horizontally, applying adhesive, folding it in half, heating, pressing, and finally cutting it to form a bag. To achieve automated bag-making, the entire machine is equipped with an advanced motion controller that serves as the main control system, allowing for seamless multi-servo linkage operations.

In summary, this machine is specially developed to create rigid mailer envelopes using a mix of foam and corrugated paper. Its sophisticated motion controller ensures efficient and automatic bag-making processes, making it a versatile and reliable equipment for producing one or two bags at a time.

We also have other paper devices:

1. The Honeycomb Paper Envelope Machine is designed to produce paper bags that offer an eco-friendly alternative to bubble film bags, while providing excellent cushioning capabilities.

2. With the Paper Bubble Envelope Machine, you can manufacture paper bags that effectively replace bubble film bags and ensure superior buffering performance.

3. The Bottom Gusset Bag Machine enables the production of paper bags that are ideal substitutes for conventional gray and black film express bags, as well as paper-plastic composite bags. Moreover, transparent paper bags can replace POPP clothing bags and hospital pill bags, among others.

4. The Honeycomb Paper Rolling Cutting Machine is specifically tailored to produce honeycomb paper for packaging cosmetics, medicine bottles, circuit boards, electronic components, and more, delivering reliable cushioning properties in lieu of bubble film.

All these bags are entirely plastic-free, as they are made from fully recycled pulp and are meticulously bonded together, exemplifying a truly environmentally friendly solution.

Product Attributes

Specification	Details
Model No.	KPEB-700-CP
Brand	ZHENGDING
Applicable Industries	Express Industry
Showroom Location	None
Condition	New
Machine Type	Bag Forming Machine
Material	Paper
Computerized	Yes
Brand Name	zhengding
Model Number	zd-500
Dimension(LWH)	190026002300mm
Warranty	1 Year
Key Selling Points	Easy To Operate
Marketing Type	New Product 2020, Other
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Warranty Of Core Components	1 Year
Core Components	Motor
Max Speed	70pcs/Min
Scope of Application	Single layer corrugated paper roll
Mechanical Execution Speed	25-70 PCS/min
Maximum Bag-making Width (Bag Height)	600mm (including envelope tongue)
Working Voltage	380V50HZ, three-phase and four-wire
Maximum Bag Length (Bag Width)	500mm
Effective Unwinding Width	1250mm
Effective Unwinding Diameter	1200mm
Mechanical Weight	6000KG
Dimensions	1900mm/2600mm/2300mm(L/W/H)
Power Backup	30KW
After Warranty Service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location	None
After-sales Service Provided	Field installation, commissioning and training
Applicable Industry	Manufacturing Plant
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts
Where to provide local services (in which countries are there overseas service outlets)	None
Showroom location (in which countries are there sample rooms overseas)	None
Status	New
Bag Material	Paper
Programming Control	Yes
Place of Origin	China
Warranty Period	1 Year
Core Selling Point	Easy To Operate, Flexible Manufacturing, Multifunctional, Long Service Life, Remote Control
Mechanical Test Report	Provided
Video Factory Inspection	Provided
Core Component Warranty Period	1 Year
Bag Type	Courier Bag
Place of Origin	Zhejiang, China
Voltage	380V 50Hz
Weight	6000 KG
Certification	ISO 9001
Supply Ability & Additional Information	Packaging: Wooden pallet, stretch film package; Transportation: Ocean, Land; Place of Origin: China; Supply Ability: 5 Set/Sets per Month; Certificate: CE; Payment Type: L/C, T/T; Incoterm: FOB

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: stretch film and wooden pallet or as customer's requirement.

Picture Example:

Product information

Parameter	Details
Product Name	Corrugated Paper Bag Making Machine
Max. Speed	70pcs/min
Maximum Bag Length (Bag Width)	500mm
Effective Unwinding Width	1250mm
Material	Kraft paper
Effective Unwinding Diameter	1200mm
Mechanical Weight	6000KG
Dimensions	1900mm/2600mm/2300mm (L/W/H)
Power Backup	30KW

Our Company

Wenzhou Zhengding Packaging Machinery Co., Ltd is a professional and dedicated technical enterprise that focuses on the research and development, as well as the manufacturing of packaging equipment. With a rich history of 24 years in the industry and more than 10 years of experience in this field, we are committed to delivering top-quality products and exceptional service, always striving for improvement.

Our product range includes over 30 different types of machines, such as the bubble shockproof bag making machine, stationery machine, high-precision cross-cutting machine, and slitting machine, among others. Our company's R&D department is well-equipped to customize high-tech machines that cater to your specific requirements.

Throughout our long-standing presence in the industry, we have established stable cooperation with many high-quality enterprises, granting us a deeper understanding of the packaging and stationery industry. This experience has also heightened our sensitivity to technological innovations within the sector. Rest assured, we approach our work with sincerity, aiming to contribute to the advancement of your career and success.
